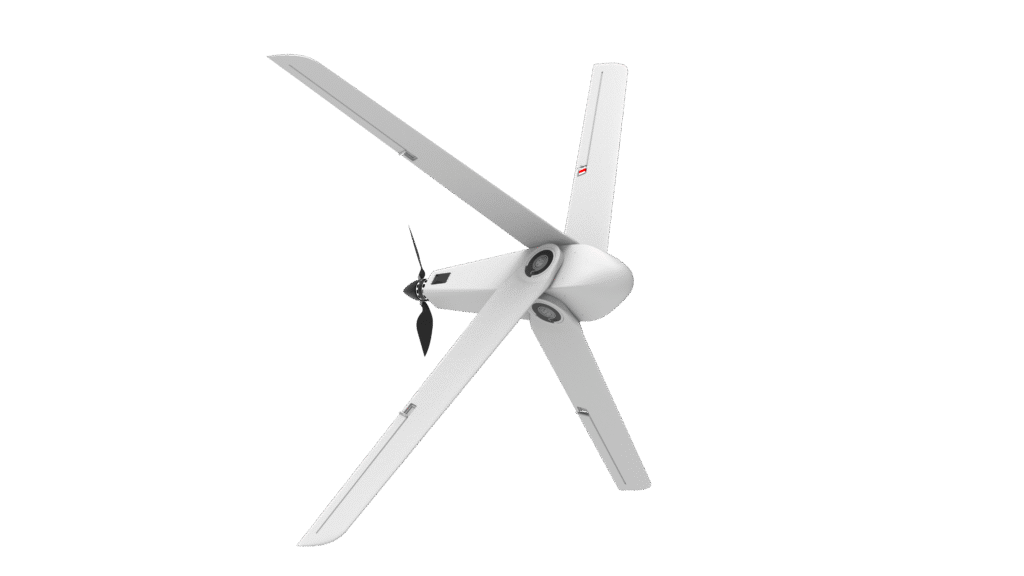

The LM-20 is a cost-effective tactical drone featuring a pneumatic catapult for stealthy, all-weather launches.
Its X-layout design ensures superior flight stability and maneuverability for precise operations.
With parachute recovery capability, the drone can be safely retrieved and reused, while its low-cost design enables large-scale deployment.
Ideal for surveillance and precision missions, the LM-20 delivers high performance with minimal acoustic/IR signature.
LM-20
20kg
MTOW
5kg
Payload
70mins
Fight time
220km
Max range
Technical Specifications
- Length ……………………………………………………………………………………………………………………………………………………………………………1500 mm
- Height……………………………………………………………………………………………………………………………………………………………………………… 260 mm
- Wingspan…………………………………………………………………………………………………………………………………………………………………………2000 mm
- Airframe material……………………………………………………………………………………………………………………… Aviation carbon fiber composites
- Cruising speed…………………………………………………………………………………………………………………………………………………………………… 30 m/s
- Altitude……………………………………………………………………………………………………………………………………………………………………………… 5000 m
- Temperature…………………………………………………………………………………………………………………………………………………………………-20°C~55°C
- Wind resistance……………………………………………………………………………………………………………………………take-off level 5 / cruising level 6
- Take-off……………………………………………………………………………………………………………………………………………………………Pneumatic catapult

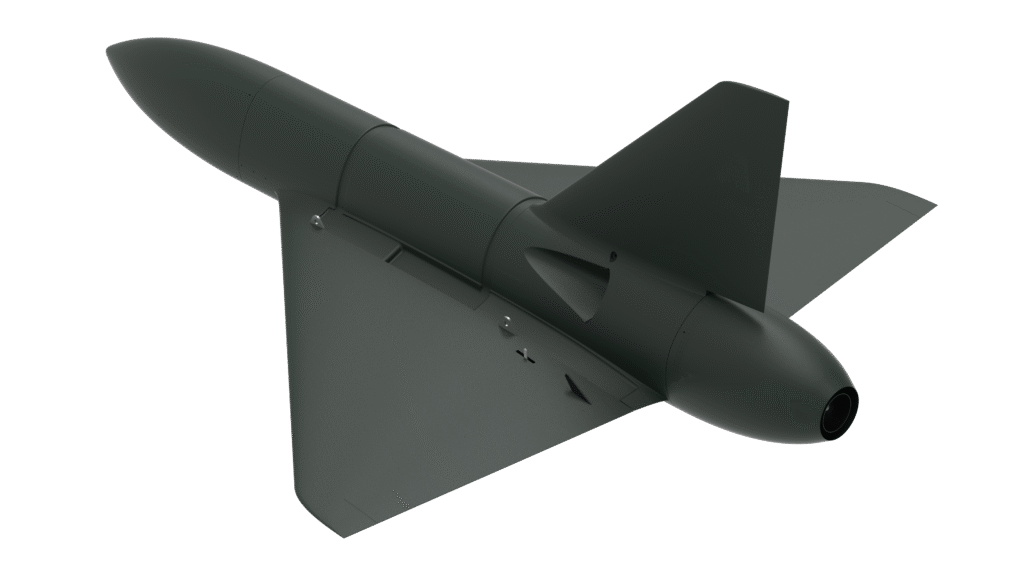

The LM-40 stealth launch system features thermal-signature-free, low-noise operation for concealed deployment in all conditions. Powered by a turbojet engine reaching 110 m/s,
it executes rapid penetration missions while its parachute recovery system and low-RCS design ensure reusability and survivability.
This cost-effective solution is optimized for mass deployment and saturation attacks.
LM-40
40kg
MTOW
7kg
Payload
30mins
Fight time
120km
Max range
Technical Specifications
- Length ……………………………………………………………………………………………………………………………………………………………………………2100 mm
- Height……………………………………………………………………………………………………………………………………………………………………………… 642 mm
- Wingspan…………………………………………………………………………………………………………………………………………………………………………1464 mm
- Airframe material……………………………………………………………………………………………………………………… Aviation carbon fiber composites
- Cruising speed…………………………………………………………………………………………………………………………………………………………………… 70 m/s
- Altitude…………………………………………………………………………………………………………………………………………………………………………… ≥7000 m
- Temperature…………………………………………………………………………………………………………………………………………………………………-20°C~45°C
- Wind resistance……………………………………………………………………………………………………………………………take-off level 5 / cruising level 6
- Take-off……………………………………………………………………………………………………………………………………………………………Pneumatic catapult
